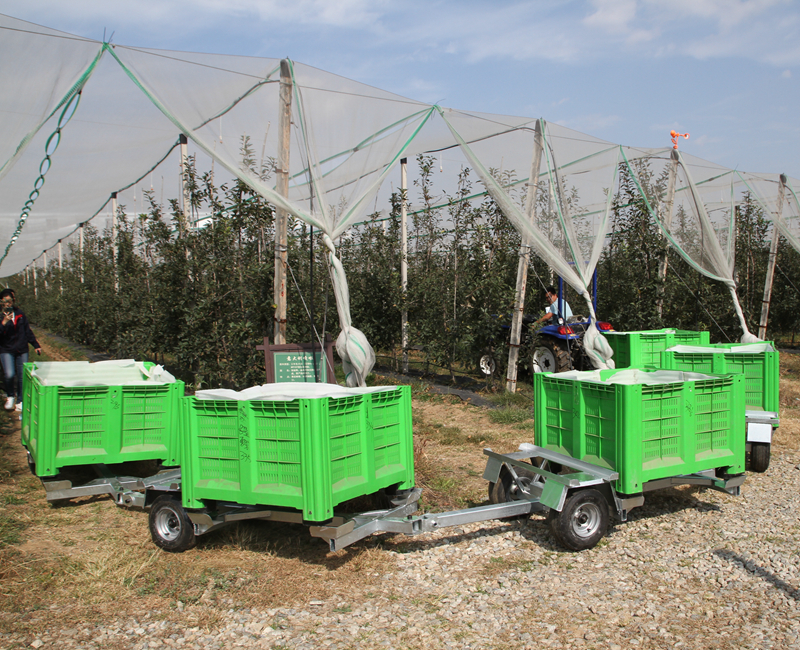

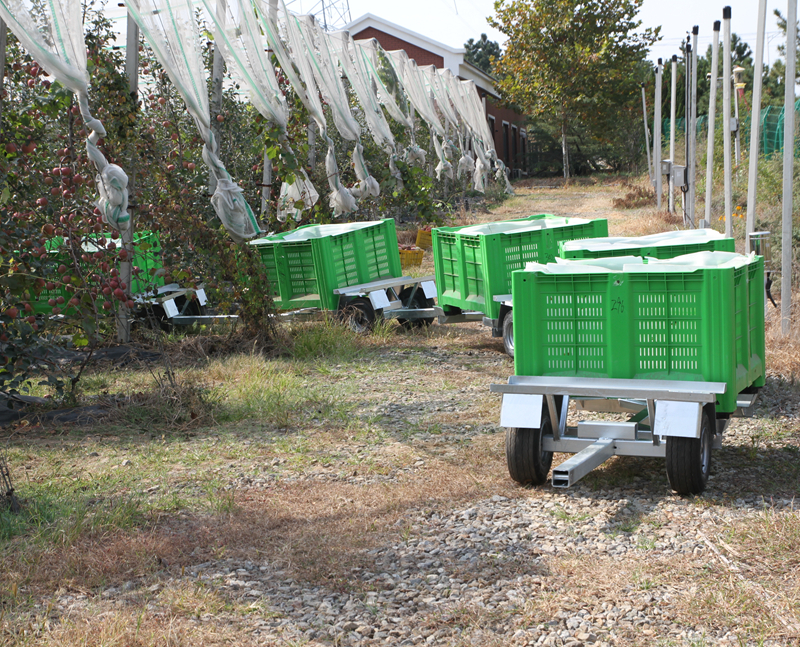

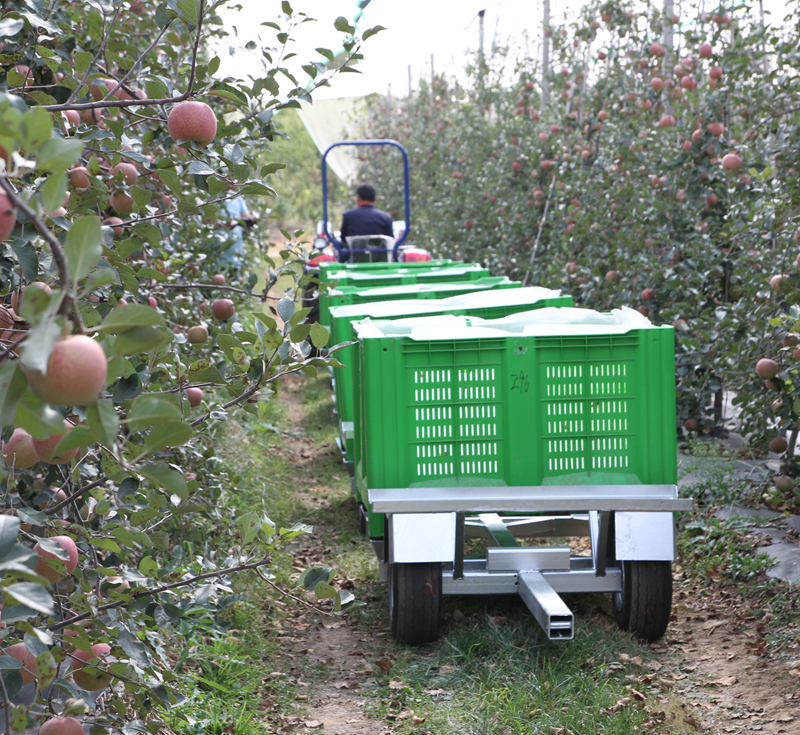

OP2W0-JZ-3采摘列車
OP2W0-JZ-3 Picking Train
描述Description:
采摘列車是我司為提高現代化果園采摘運輸周轉效率、大幅減少果品碰壓傷而設計的果品運輸環節專用裝備。列車結構設計簡潔堅固；整車采用熱浸鋅表面處理工藝，經久耐用；果筐放置處設有4套經過調校的果筐減震裝置，相比傳統運輸車能極大地減少果品運輸途中的損傷率，提高經濟效益，可謂“小投入大收益”。列車輪胎采用高爾夫球車寬體輪胎，能有效減少坑洼路面對果品的顛簸。每4-6列為一個編組，每組列車帶有拖拉機牽引支架1件，存放收納支架1件，方便使用和存放。
The picking train is a special equipment designed by our company to improve the picking and transportation turnover efficiency of modern orchards and greatly reduce fruit bruises. Train structure design is simple and firm; The whole vehicle adopts hot-dip zinc surface treatment process, which is durable; Four sets of adjusted damping devices for fruit baskets are set at the place where fruit baskets are placed. Compared with traditional transport vehicles, they can greatly reduce the damage rate during fruit transportation and improve the economic benefits, which can be described as "small investment and large income". The wide body tire of golf cart is adopted for the train, which can effectively reduce the bumpiness of the pitted road facing the fruit. Each 4-6 trains are in a formation. Each group of trains is equipped with one tractor traction support and one storage support for easy use and storage.
OP2W0-JZ-3果園采摘列車 產品規格表 Product Specification Table of OP2W0-JZ-3 Orchard Picking Train | |||
序號 Serial No. | 項目 Item | 單位 Unit | 主要參數 Main parameter |
1 | 外形尺寸（長*寬*高） Overall dimensions (L * W * H) | mm | 2710*1210*660mm |
2 | 兩輪胎外側間距 Distance between two tires outside | mm | 1000mm |
3 | 底盤離地間隙 Chassis ground clearance | mm | 185mm |
4 | 額定載荷Rated load | kg | 500kg |
5 | 行走方式 Walking mode | 拖拉機牽引 Tractor traction | / |
6 | 最小轉彎半徑 Minimum turning radius | mm | 約3500mm(與配套拖拉機軸距相關) Abt.3500mm (related to the tractor) |
車載果筐支架常規尺寸（特殊尺寸需定制） Regular size of train mounted fruit basket bracket (special size needs to be customized) | |||
1 | 外形尺寸（長*寬*高） Overall dimensions (L * W * H) | 1000*1000mm（支架單方向尺寸可調） ( One way size adjustable) | / |
2 | 外形尺寸（長*寬*高） Overall dimensions (L * W * H) | 1100*1000mm（支架單方向尺寸可調） ( One way size adjustable) | / |
3 | 外形尺寸（長*寬*高） Overall dimensions (L * W * H) | 1130*1130mm（支架單方向尺寸可調） ( One way size adjustable) | / |
4 | 外形尺寸（長*寬*高） Overall dimensions (L * W * H) | 1200*1200mm（支架單方向尺寸可調） ( One way size adjustable) | / |
5 | 外形尺寸（長*寬*高） Overall dimensions (L * W * H) | 如放置小塑料果筐需單獨定制托盤 If the small plastic fruit basket is placed, the tray shall be customized separately | / |
*參數表僅描述了基本參數，高配高功率及選裝配置參數請咨詢中頤公司。
*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.
*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。咨詢電話 4008-400-232
*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
